Filtration Group filter element PI 3108 PS 10
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Filter element Pi 3108 PS 10 / 77680341
Longer service life than conventional filters
Lower energy consumption due to lower differential pressure for longer
Up to 30% more dirt-holding capacity compared to standard products
Guaranteed defined filter retention rate according to ISO 16889 (multi-pass test) over the entire operating time
Star-pleated filter element
Corrosion-protected end caps and support tubes, chrome VI free
Flow direction from outside to inside
Temperature application range -10 °C to +120 °C
For DIN elements: Standard seals NBR, other seals on request
| Filter element | FG Standard |
| Nominal size (l/min) | 80 |
| Height (mm) | 171 |
| Outer diameter (mm) | 47 |
| Inner diameter (mm) | 25.5 |
| Mounting diameter (mm) | 25.5 |
| Differential pressure resistance (bar) | 20 |
| Filter material | Glass fiber |
| Filter fineness (micrometres) | 10 |
| End disc material | Sheet metal end plate |
| Differential pressure (bar) | 20 |
| Element type | FG Standard |
| Filter material | Glass fiber |
| Nominal height (mm) | 171 |
| Medium | Hydraulic oil |
| Nominal size | 80 |
Similar Products
| Product | Price | ||
|---|---|---|---|

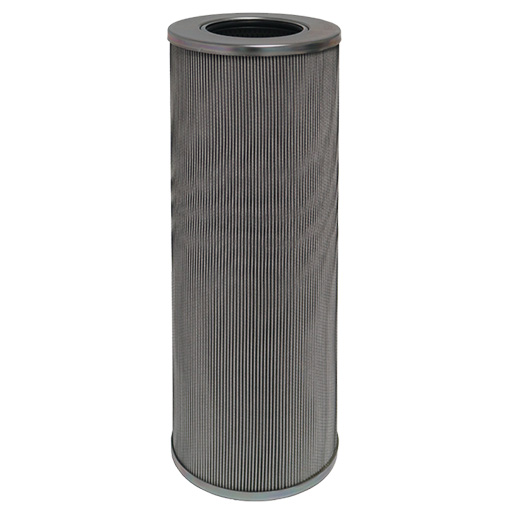

![[76900625] Filtration Group EcoPart Filter element M 0008 DN 2 010](/web/image/product.template/55896/image_128/%5B76900625%5D%20Filtration%20Group%20EcoPart%20Filter%20element%20M%200008%20DN%202%20010?unique=d4441e6)
|
