Filtration Group filter element PI 4115 PS 25
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Filter element Pi 4115 PS 25 / 77680473
Longer service life than conventional filters
Lower energy consumption due to lower differential pressure for longer
Up to 30% more dirt-holding capacity compared to standard products
Guaranteed defined filter retention rate according to ISO 16889 (multi-pass test) over the entire operating time
Star-pleated filter element
Corrosion-protected end caps and support tubes, chrome VI free
Flow direction from outside to inside
Temperature application range -10 °C to +120 °C
For DIN elements: Standard seals NBR, other seals on request
| Filter element | FG Standard |
| Nominal size (l/min) | 150 |
| Height (mm) | 142 |
| Outer diameter (mm) | 84 |
| Inner diameter (mm) | 47.5 |
| Mounting diameter (mm) | 47.5 |
| Differential pressure resistance (bar) | 20 |
| Filter material | Glass fiber |
| Filter fineness (micrometres) | 25 |
| End disc material | Plastic end disk PA |
| Differential pressure (bar) | 20 |
| Element type | FG Standard |
| Filter material | Glass fiber |
| Nominal height (mm) | 142 |
| Medium | Hydraulic oil |
| Nominal size | 150 |
Similar Products
| Product | Price | ||
|---|---|---|---|

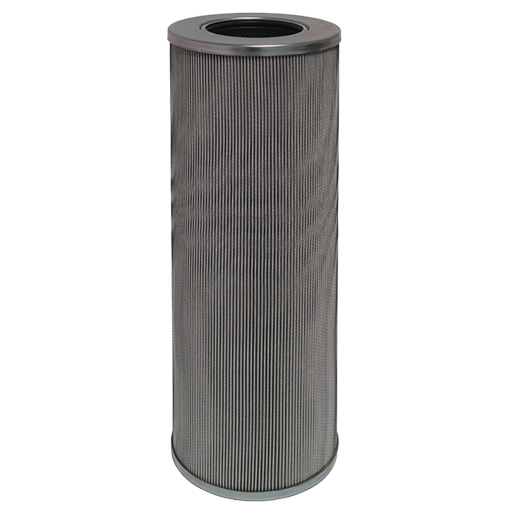

![[76901052] Filtration Group Filter element M0015 DN2 025](/web/image/product.template/52581/image_128/%5B76901052%5D%20Filtration%20Group%20Filter%20element%20M0015%20DN2%20025%20?unique=d4441e6)
|
