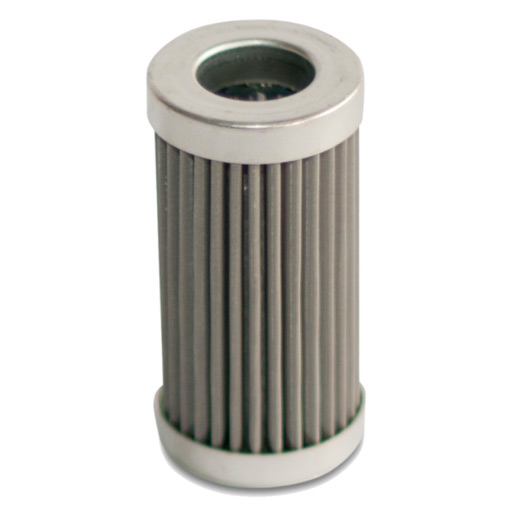

Filtration Group filter element PI 8545 DRG 100
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Filter element Pi 8545 DRG 100 / 77689094
Star-pleated filter element
Corrosion-protected end caps and support tubes, chrome VI free
Flow direction from outside to inside
Temperature application range -10 °C to +120 °C
For DIN elements: Standard seals NBR, other seals on request
| Filter element | FG Standard |
| Nominal size (l/min) | 450 |
| Height (mm) | 372 |
| Outer diameter (mm) | 84 |
| Inner diameter (mm) | 47.5 |
| Mounting diameter (mm) | 47.5 |
| Differential pressure resistance (bar) | 20 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 100 |
| End disc material | Plastic end disk PA |
| Differential pressure (bar) | 20 |
| Element type | FG Standard |
| Filter material | Wire mesh |
| Nominal height (mm) | 372 |
| Medium | Hydraulic oil |
| Nominal size | 450 |

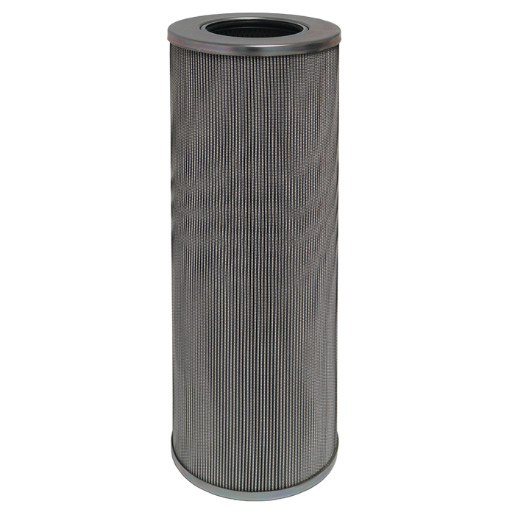

![[70582598] Filtration Group EcoParts Filter element for Filtration Group (ex. MAHLE) Filter Pi 8545 DRG 100](/web/image/product.template/223027/image_128/%5B70582598%5D%20Filtration%20Group%20EcoParts%20Filter%20element%20for%20Filtration%20Group%20%28ex.%20MAHLE%29%20Filter%20Pi%208545%20DRG%20100?unique=d4441e6)
