Filtration Group filter element Pi 9430 DRG VST 60
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

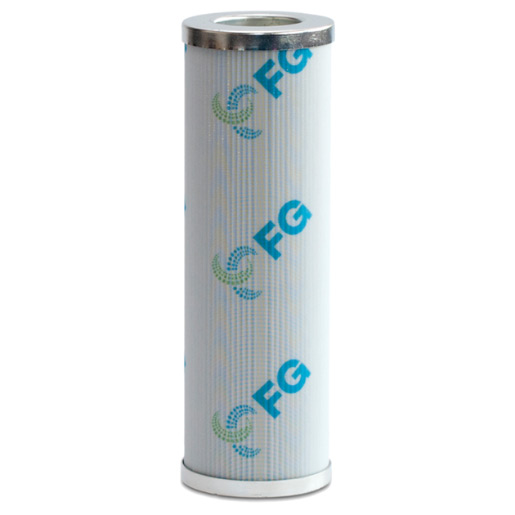

Filtration Group (formerly MAHLE) Filter element Pi 9430 DRG VST 60 / 77689250
| Filter element | FG Standard |
| Nominal size (l/min) | 300 |
| Height (mm) | 257.5 |
| Outer diameter (mm) | 83,20 |
| Inner diameter (mm) | 47.5 |
| Mounting diameter (mm) | 47.5 |
| Differential pressure resistance (bar) | 210 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 60 |
| End disc material | Sheet metal end plate |
| Differential pressure (bar) | 210 |
| Element type | FG Standard |
| Filter material | Wire mesh |
| Nominal height (mm) | 257,5 |
| Medium | Hydraulic oil |
| Nominal size | 300 |
