Filtration Group filter element 852 275 PS 10

377.23 € 377.23 EUR 377.23 € VAT Included

317.00 € VAT Included

Brand

This combination does not exist.

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77725583

Category :

Filtration Group Filter Elements

Weight :

2.41 kg

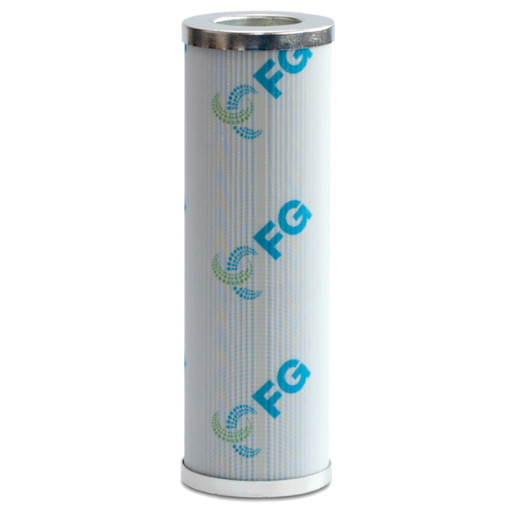

Filtration Group (formerly MAHLE) Filter element 852 275 PS 10 / 77725583

Longer service life than conventional filters

Lower energy consumption due to lower differential pressure for longer

Up to 30% more dirt-holding capacity compared to standard products

Guaranteed defined filter retention rate according to ISO 16889 (multi-pass test) over the entire operating time

Star-pleated filter element

Corrosion-protected end caps and support tubes, chrome VI free

Flow direction from outside to inside

Temperature application range -10 °C to +120 °C

For DIN elements: Standard seals NBR, other seals on request

Mounting diameter (mm)	32.5
Outer diameter (mm)	150.4
Differential pressure (bar)	5
Element type	852 Series
End disc material	Sheet metal end plate
Filter fineness (micrometres)	10
Filter material	Glass fiber
Nominal height (mm)	355,4
Inner diameter (mm)	32.5
Medium	Hydraulic oil
Nominal size	50
Seal material	NBR

FG-Datenblatt_Filterelemente_de

Download
