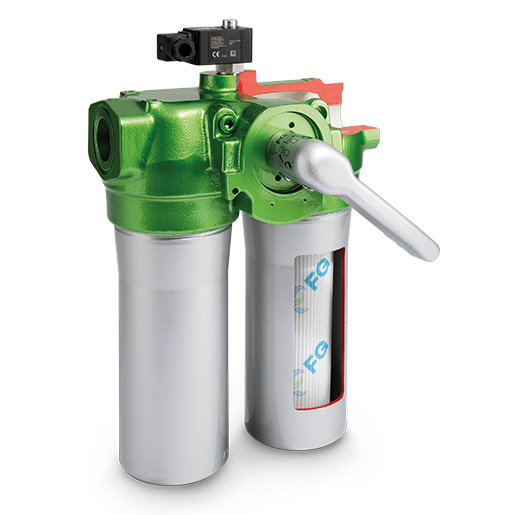

Filtration Group Low-pressure duplex filter PI 2130-068

Price:

1,687.42 €

English (US)
  2. Shop
  3. Filtration Group Duplex Filter
  4. Filtration Group Low-pressure duplex filter PI 2130-068
Filtration Group Low-pressure duplex filter PI 2105-068
Filtration Group Low-pressure duplex filter PI 2105-068
1,069.81 € 1,069.81 €
Filtration Group Low-pressure duplex filter PI 2115-069
Filtration Group Low-pressure duplex filter PI 2115-069
1,479.17 € 1,479.17 €

Filtration Group Low-pressure duplex filter PI 2130-068

https://staging-filcom-16.laminfra.de/web/image/product.template/55801/image_1920?unique=d4441e6

1,687.42 € 1687.42 EUR 1,687.42 € VAT Included

1,418.00 € VAT Included

(1,687.42 € / pcs)

Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Filtration Group

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77774516

Category :

Filtration Group Duplex Filter

Weight :

9.10 kg

Filtration Group (formerly MAHLE) Low-pressure duplex filter Pi 213-68 / 77774516

  • Low space requirement due to compact design
  • Visual maintenance indicator
  • Threaded connection
  • Changeover plug on dirty side only
  • Ergonomic changeover lever with pressure compensation and lever lock
  • Minimal pressure loss due to streamlined design of the components
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.

    Important note:
    We supply the Mahle Pi 213-68 low-pressure duplex filter without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Thread ISO 228
    Connection size G 1 1/2
    Display pressure of contamination indicator (bar) 2,2
    Evaluation of pollution indicators mechanical
    Operating temperature -10°C bis +120°C
    Max. Operating pressure (bar) 32
    Nominal size 300
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material ALU
    Filter head material ALU
