Filtration Group Low-pressure duplex filter PI 2115-057

Price:

1,431.57 €

English (US)
  2. Shop
  3. Filtration Group Duplex Filter
  4. Filtration Group Low-pressure duplex filter PI 2115-057

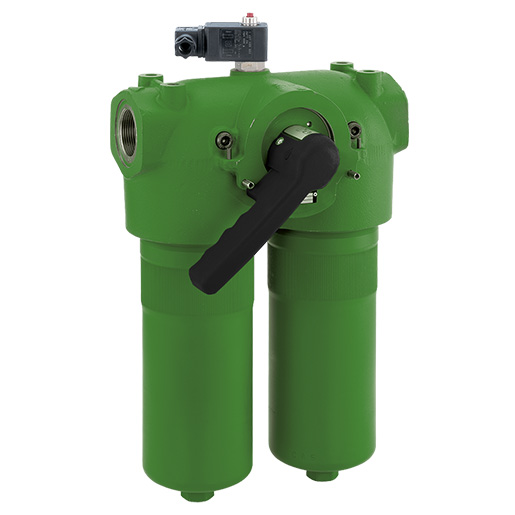

Filtration Group Medium-Double switching filter Pi 37040-010
Filtration Group Medium-Double switching filter Pi 37040-010
2,321.69 € 2,321.69 €
Filtration Group Low-pressure duplex filter PI 2105-068
Filtration Group Low-pressure duplex filter PI 2105-068
1,069.81 € 1,069.81 €

Filtration Group Low-pressure duplex filter PI 2115-057

https://staging-filcom-16.laminfra.de/web/image/product.template/54930/image_1920?unique=d4441e6

1,431.57 € 1431.57 EUR 1,431.57 € VAT Included

1,203.00 € VAT Included

(1,431.57 € / pcs)

Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Filtration Group

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77774573

Category :

Filtration Group Duplex Filter

Weight :

8.30 kg

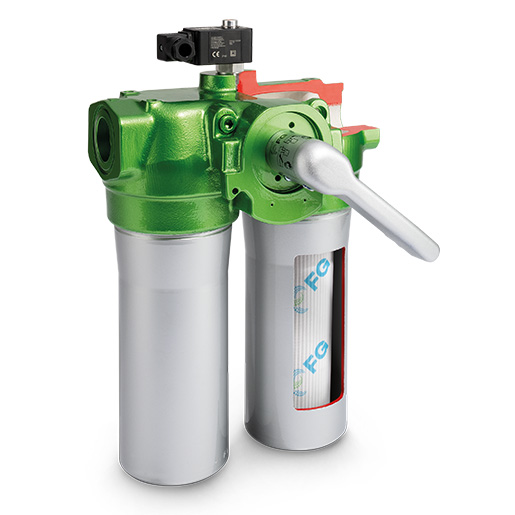

Filtration Group (formerly MAHLE) Low-pressure duplex filter Pi 2115-57 / 77774573

  • Low space requirement due to compact design
  • Bypass
  • Visual maintenance indicator
  • Threaded connection
  • Changeover plug on dirty side only
  • Ergonomic changeover lever with pressure compensation and lever lock
  • Minimal pressure loss due to streamlined design of the components
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • Important note:
    We supply the Mahle Pi 2115-57 low-pressure duplex filter without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Thread ISO 228
    Connection size G 1 1/2
    Display pressure of contamination indicator (bar) 2,2
    Evaluation of pollution indicators mechanical
    Operating temperature -10°C bis +120°C
    Bypass valve Opening pressure (bar) 3,5
    Max. Operating pressure (bar) 32
    Nominal size 150
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material ALU
    Filter head material ALU
