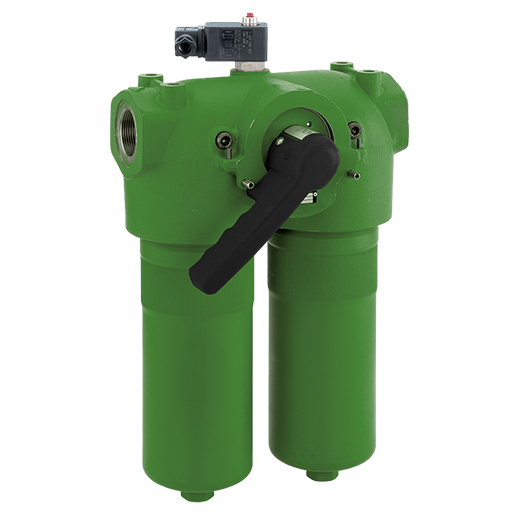

Filtration Group Double switching filter PI 3730-012

Price:

2,150.33 €

English (US)
  2. Shop
  3. Filtration Group Duplex Filter
  4. Filtration Group Double switching filter PI 3730-012
Filtration Group Low-pressure duplex filter Pi 2108-068
Filtration Group Low-pressure duplex filter Pi 2108-068
1,097.18 € 1,097.18 €

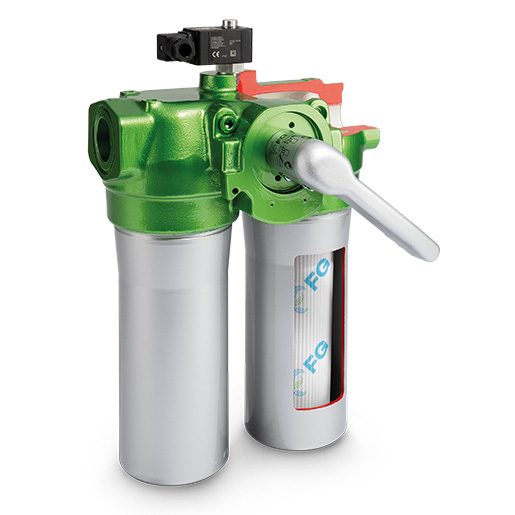

Filtration Group PI 2108-058 Niederdruck Double switching filter
Filtration Group PI 2108-058 Niederdruck Double switching filter
1,225.70 € 1,225.70 €

Filtration Group Double switching filter PI 3730-012

https://staging-filcom-16.laminfra.de/web/image/product.template/52561/image_1920?unique=d4441e6

2,150.33 € 2150.33 EUR 2,150.33 € VAT Included

1,807.00 € VAT Included

(2,150.33 € / pcs)

Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Filtration Group

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77810450

Category :

Filtration Group Duplex Filter

Weight :

36.50 kg

Filtration Group (formerly MAHLE) Medium-pressure duplex filter Pi 373-12 / 778145

  • Low space requirement due to compact design
  • Modular system for optimum filter selection
  • Minimal pressure loss due to streamlined design of the components
  • Bypass
  • Visual maintenance indicator
  • Changeover plug on dirty side only
  • Ergonomic changeover lever with lever lock and pressure compensation
  • One-handed operation
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements


    • Important note:
    We supply the Mahle medium-pressure duplex filter Pi 373-12 without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Thread ISO 228
    Connection size G 1 1/2
    Display pressure of contamination indicator (bar) 5
    Evaluation of pollution indicators mechanical
    Operating temperature -10°C bis +120°C
    Bypass valve Opening pressure (bar) 7
    Max. Operating pressure (bar) 210
    Nominal size 300
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material Steel
    Filter head material GGG
