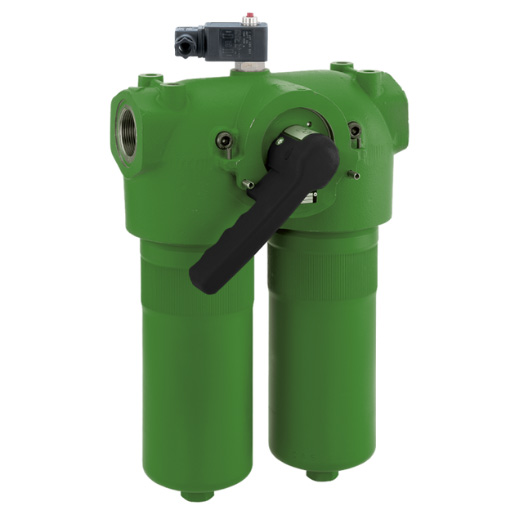

Filtration Group Medium pressure double switching filter Pi 3745-011
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
| Connection type | Thread ISO 228 |
| Connection size | G 1 1/2 |
| Operating temperature | -10°C bis +120°C |
| Bypass valve Opening pressure (bar) | 7 |
| Max. Operating pressure (bar) | 210 |
| Nominal size | 450 |
| Seal material | NBR |
| Filter housing material | Steel |
| Filter head material | GGG |
