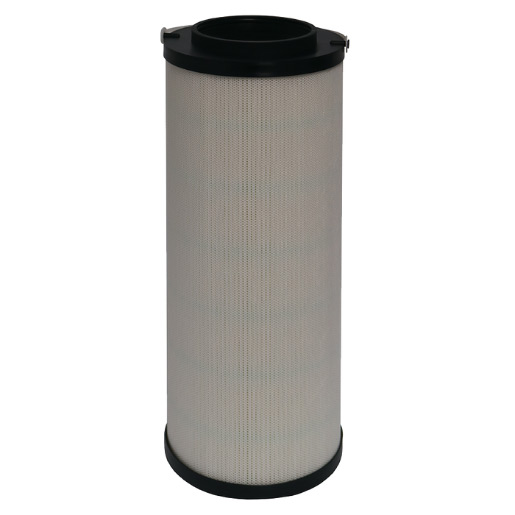

Filtration Group EcoParts Filter element for Pall Filter HC9020FKS8H
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
| Mounting diameter (mm) | 25.8 |
| Outer diameter (mm) | 45 |
| Differential pressure (bar) | 20 |
| Element type | EcoParts |
| End disc material | Sheet metal end plate |
| Filter fineness (micrometres) | 10 |
| Filter material | Glass fiber |
| Height (mm) | 206.6 |
| Inner diameter (mm) | 25.8 |
| Medium | Hydraulic oil |
| Original manufacturer | Pall |
| Original manufacturer product number | HC9020FCS8H |
| Seal material | NBR |
| Compatible with SF filter | HY 18305 |
