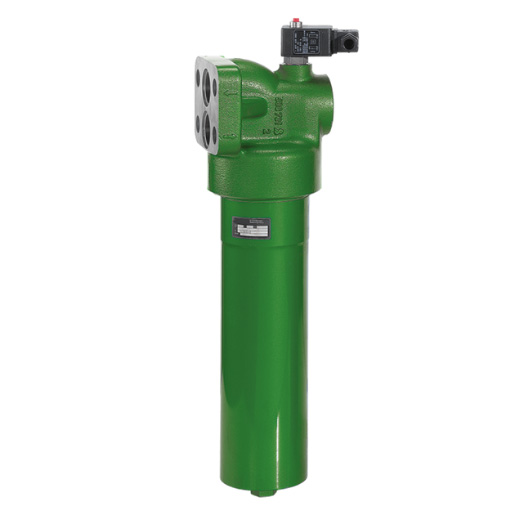

Filtration Group Medium pressure filter Pi 3415-013

980.56 € 980.5600000000001 EUR 980.56 € VAT Included

824.00 € VAT Included

Brand

This combination does not exist.

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77921927

Category :

Filtration Group Medium Pressure Filter

Weight :

14.40 kg

Filtration Group (formerly MAHLE) Medium pressure filter Pi 3415-13 / 77921927

Intended for mounting on control blocks

Low space requirement due to compact design

Modular system for optimum filter selection

Minimal pressure loss due to streamlined design of the components

Bypass

Electrical maintenance indicator

Available with high-efficiency PS filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle medium pressure filter Pi 3415-13 without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	ANFLANSCHBAR
Connection size	DN 38
Display pressure of contamination indicator (bar)	5
Evaluation of pollution indicators	electrical / mechanical
Operating temperature	-10°C bis +120°C
Bypass opening pressure (bar)	7
Contact type Contamination indicator	Closer / Opener
Max. Operating pressure (bar)	315
Nominal size	150
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Seal material	NBR
Filter housing material	Steel
Filter head material	GGG

FG-Datenblatt_Pi340_NG450_de

Download

Filtration Group Medium pressure filter Pi 3415-013

Brand

Filtration Group (formerly MAHLE) Medium pressure filter Pi 3415-13 / 77921927
