Filtration Group filter element line filter PI 23100 DN PS10
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

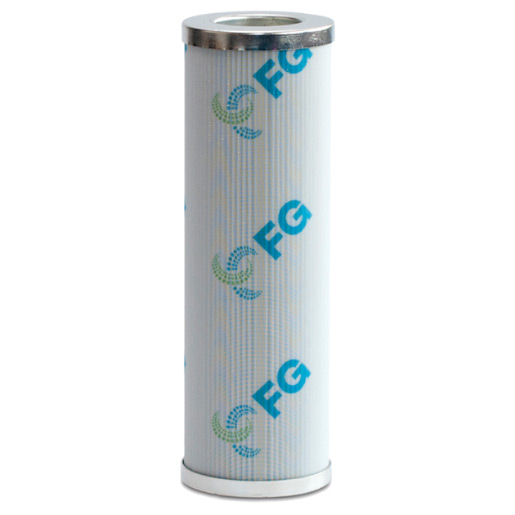

Filtration Group (formerly MAHLE) Filter element Inline filter Pi 23100 DN PS10 / 77925647
Longer service life than conventional filters
Lower energy consumption due to lower differential pressure for longer
Up to 30% more dirt-holding capacity compared to standard products
Guaranteed defined filter retention rate according to ISO 16889 (multi-pass test) over the entire operating time
Star-pleated filter element
Corrosion-protected end caps and support tubes, chrome VI free
Flow direction from outside to inside
Temperature application range -10 °C to +120 °C
For DIN elements: Standard seals NBR, other seals on request
| Filter element | Standard element |
| Seal material | NBR |
| Nominal size (l/min) | 1000 |
| Height (mm) | 630 |
| Outer diameter (mm) | 100 |
| Inner diameter (mm) | 60.4 |
| Mounting diameter (mm) | 60.4 |
| Differential pressure resistance (bar) | 20 |
| Filter material | Glass fiber |
| Filter fineness (micrometres) | 10 |
| End disc material | Sheet metal end plate |
| Differential pressure (bar) | 20 |
| Element type | Standard element |
| Filter material | Glass fiber |
| Nominal height (mm) | 630 |
| Medium | Hydraulic oil |
| Nominal size | 1000 |

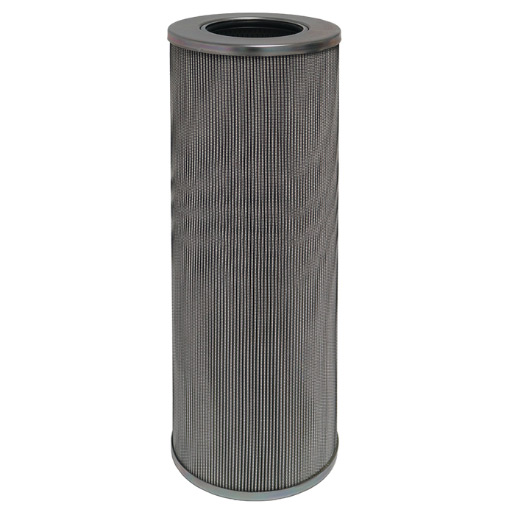

![[76910236] Filtration Group EcoParts Filter element for Filtration Group (ex. MAHLE) Filter PI 23100 DN SMX 10](/web/image/product.template/233230/image_128/%5B76910236%5D%20Filtration%20Group%20EcoParts%20Filter%20element%20for%20Filtration%20Group%20%28ex.%20MAHLE%29%20Filter%20PI%2023100%20DN%20SMX%2010?unique=d4441e6)
