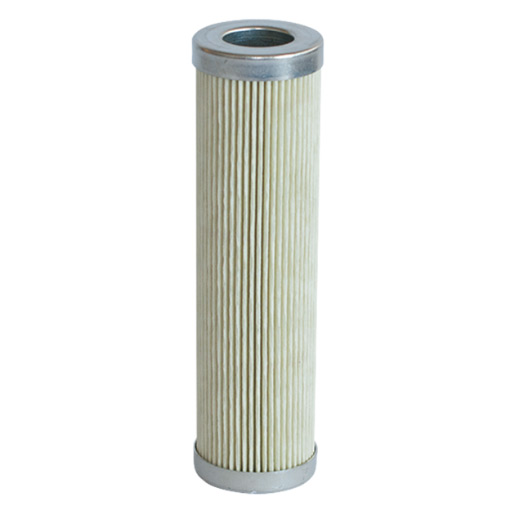

Filtration Group filter element line filter PI 13006 DN MIC 10 NBR
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Filter element Inline filter Pi 13006 DN MIC 10 / 77929706
| Filter element | Standard element |
| Seal material | NBR |
| Nominal size (l/min) | 63 |
| Height (mm) | 157.8 |
| Outer diameter (mm) | 45 |
| Inner diameter (mm) | 22.6 |
| Mounting diameter (mm) | 22.6 |
| Differential pressure resistance (bar) | 20 |
| Filter material | Cellulose |
| Filter fineness (micrometres) | 10 |
| End disc material | Sheet metal end plate |
| Filter housing type | Line filter DIN 24550 |
| Differential pressure (bar) | 20 |
| Element type | Standard element |
| Filter material | Zellulose |
| Nominal height (mm) | 157,8 |
| Medium | Hydraulic oil |
| Nominal size | 63 |
