Filtration Group filter element line filter Pi 15100 DN MIC 25
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

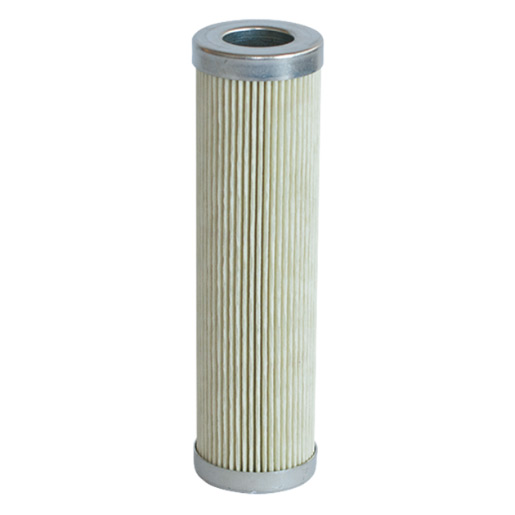

Filtration Group (formerly MAHLE) Filter element Inline filter Pi 15100 DN MIC 25 / 77961600
| Filter element | Standard element |
| Seal material | NBR |
| Nominal size (l/min) | 1000 |
| Height (mm) | 630 |
| Outer diameter (mm) | 100 |
| Inner diameter (mm) | 60.4 |
| Mounting diameter (mm) | 60.4 |
| Differential pressure resistance (bar) | 20 |
| Filter material | Cellulose |
| Filter fineness (micrometres) | 25 |
| End disc material | Sheet metal end plate |
| Filter housing type | Line filter DIN 24550 |
| Differential pressure (bar) | 20 |
| Element type | Standard element |
| Filter material | Zellulose |
| Nominal height (mm) | 630 |
| Medium | Hydraulic oil |
| Nominal size | 1000 |
