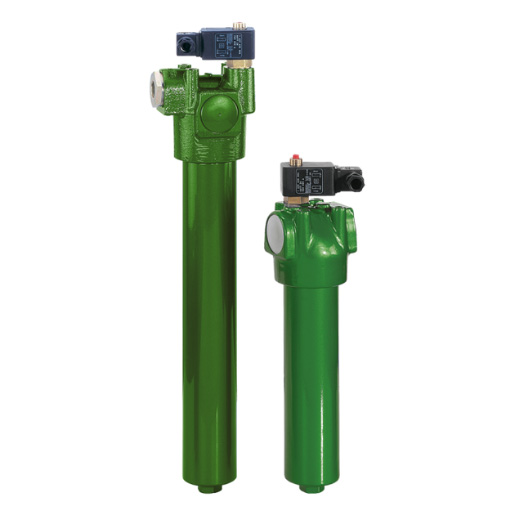

Filtration Group High pressure filter Pi 4215-011 FL

666.40 € 666.4 EUR 666.40 € VAT Included

560.00 € VAT Included

Brand

This combination does not exist.

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

77978604

Category :

Filtration Group High Pressure Filter

Weight :

13.00 kg

Filtration Group (formerly MAHLE) High-pressure filter Pi 4215-011 FL / 77978604

Low space requirement due to compact design

Modular system for optimum filter selection

Flange design

Bypass

Hole for maintenance indicator

Minimal pressure loss due to streamlined design of the components

Available with high-efficiency PS filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle Pi 4215-11 FL high-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Flange ISO 6162-2
Filter housing material	Steel
Operating temperature	-10°C bis +120°C
Connection size	DN 38
Nominal size	150
Filter head material	GGG
Seal material	NBR
Max. Operating pressure (bar)	400

FG-Datenblatt_Pi420_NG450_de

Download

Filtration Group High pressure filter Pi 4215-011 FL

Brand

Filtration Group (formerly MAHLE) High-pressure filter Pi 4215-011 FL / 77978604
