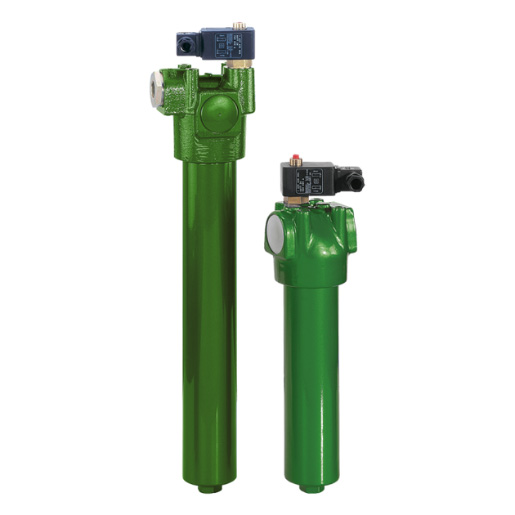

Filtration Group High pressure filter Pi 4245-010 FL
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) High-pressure filter Pi 4245-010 FL / 77978703
When using filters without a bypass, it must be ensured that the maximum differential pressure of the filter element is not exceeded.
Important note:
We supply the Mahle Pi 4245-1 FL high-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | Flange ISO 6162-2 |
| Contact type Contamination indicator | screwed-in blind plug for VA |
| Filter housing material | Steel |
| Operating temperature | -10°C bis +120°C |
| Connection size | DN 38 |
| Nominal size | 450 |
| Filter head material | GGG |
| Seal material | NBR |
| Max. Operating pressure (bar) | 400 |
