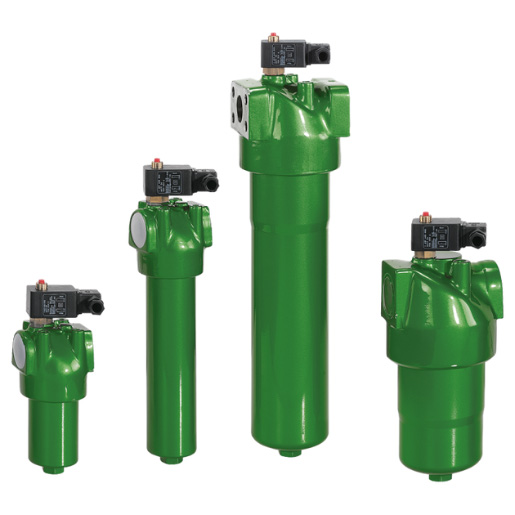

Filtration Group Medium pressure filter Pi 30025-011

590.24 € 590.24 EUR 590.24 € VAT Included

496.00 € VAT Included

Brand

This combination does not exist.

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

78208175

Category :

Filtration Group Medium Pressure Filter

Weight :

14.95 kg

Filtration Group (formerly MAHLE) Medium pressure filter Pi 30025-011 / 78208175

Low space requirement due to compact design

Modular system for optimum filter selection

Minimal pressure loss due to streamlined design of the components

Threaded connection

Bypass

Hole for maintenance indicator

Available with high-efficiency PS filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle medium pressure filter Pi 325-11 without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Thread ISO 228
Connection size	G1 1/4
Operating temperature	-10°C bis +120°C
Bypass opening pressure (bar)	7
Contact type Contamination indicator	screwed-in blind plug for VA
Max. Operating pressure (bar)	200
Nominal size	250
Seal material	NBR
Filter housing material	Steel
Filter head material	GGG

FG-Datenblatt_Pi3000_NG400_de

Download

Filtration Group Medium pressure filter Pi 30025-011

Brand

Filtration Group (formerly MAHLE) Medium pressure filter Pi 30025-011 / 78208175
