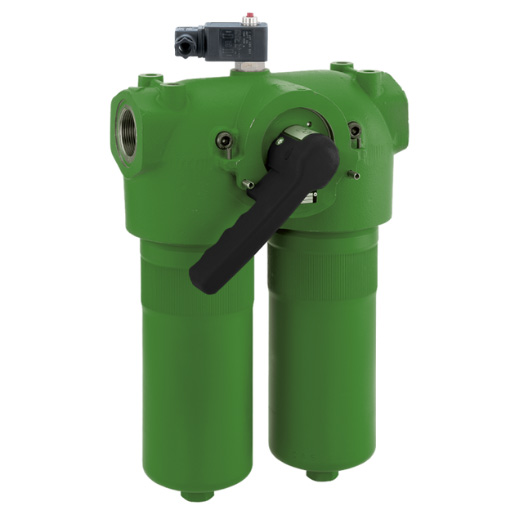

Filtration Group Double switching filter PI 37025-013

2,234.82 € 2234.82 EUR 2,234.82 € VAT Included

1,878.00 € VAT Included

Brand

This combination does not exist.

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

78259921

Category :

Filtration Group Medium Pressure Filter

Weight :

34.50 kg

Filtration Group (formerly MAHLE) Medium-pressure duplex filter Pi 3725-13 / 78259921

Low space requirement due to compact design

Modular system for optimum filter selection

Minimal pressure loss due to streamlined design of the components

Threaded connection

Bypass

Electrical maintenance indicator

Changeover plug on dirty side only

Ergonomic changeover lever with lever lock and pressure compensation

One-handed operation

Available with high-efficiency PS filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle medium-pressure duplex filter Pi 3725-13 without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Thread ISO 228
Connection size	G 1 1/2
Display pressure of contamination indicator (bar)	5
Evaluation of pollution indicators	electrical / mechanical
Operating temperature	-10°C bis +120°C
Bypass valve Opening pressure (bar)	7
Contact type Contamination indicator	Closer / Opener
Max. Operating pressure (bar)	200
Nominal size	250
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Seal material	NBR
Filter housing material	Steel
Filter head material	GGG

FG-Datenblatt_Pi3700_NG400_de
