Filtration Group Medium pressure double switching filter Pi 37040-013 FL

Price:

2,601.34 €

English (US)
  2. Shop
  3. Filtration Group Duplex Filter
  4. Filtration Group Medium pressure double switching filter Pi 37040-013 FL
Filtration Group Medium pressure double switching filter Pi 3711-013
Filtration Group Medium pressure double switching filter Pi 3711-013
1,780.24 € 1,780.24 €
Filtration Group Medium pressure double switching filter Pi 37040-011
Filtration Group Medium pressure double switching filter Pi 37040-011
2,359.77 € 2,359.77 €

Filtration Group Medium pressure double switching filter Pi 37040-013 FL

https://staging-filcom-16.laminfra.de/web/image/product.template/233878/image_1920?unique=d4441e6

2,601.34 € 2601.34 EUR 2,601.34 € VAT Included

2,186.00 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Filtration Group

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

78259939

Category :

Filtration Group Duplex Filter

Weight :

42.50 kg

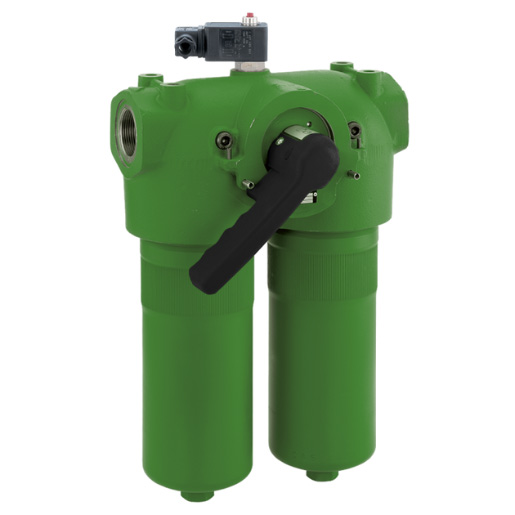

Filtration Group (formerly MAHLE) Medium-pressure duplex filter Pi 374-13 FL / 78259939

  • Low space requirement due to compact design
  • Modular system for optimum filter selection
  • Minimal pressure loss due to streamlined design of the components
  • Flange connection
  • Bypass
  • Electrical maintenance indicator
  • Changeover plug on dirty side only
  • Ergonomic changeover lever with lever lock and pressure compensation
  • One-handed operation
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements


    • Important note:
    We supply the Mahle medium-pressure duplex filter Pi 374-13 FL without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Flange ISO 6162-1
    Connection size DN 38
    Display pressure of contamination indicator (bar) 5
    Evaluation of pollution indicators electrical / mechanical
    Operating temperature -10°C bis +120°C
    Bypass valve Opening pressure (bar) 7
    Contact type Contamination indicator Closer / Opener
    Max. Operating pressure (bar) 200
    Nominal size 400
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material Steel
    Filter head material GGG
    FG-Datenblatt_Pi3700_NG400_de
    Download
