Filtration Group High pressure filter Pi 40040-013 FL

Price:

1,159.06 €

English (US)
  2. Shop
  3. Filtration Group High Pressure Filter
  4. Filtration Group High pressure filter Pi 40040-013 FL
Filtration Group High pressure filter Pi 40040-015 FL
Filtration Group High pressure filter Pi 40040-015 FL
1,148.35 € 1,148.35 €
Filtration Group High pressure filter Pi 40040-012 FL
Filtration Group High pressure filter Pi 40040-012 FL
1,062.67 € 1,062.67 €

Filtration Group High pressure filter Pi 40040-013 FL

https://staging-filcom-16.laminfra.de/web/image/product.template/233906/image_1920?unique=d4441e6

1,159.06 € 1159.06 EUR 1,159.06 € VAT Included

974.00 € VAT Included

(1,159.06 € / pcs)

Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Filtration Group

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

78304123

Category :

Filtration Group High Pressure Filter

Weight :

17.25 kg

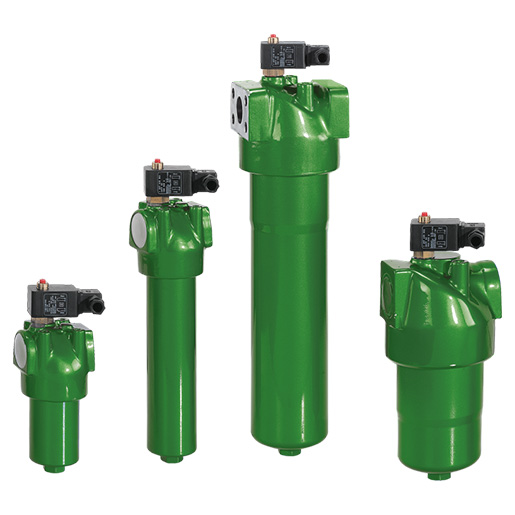

Filtration Group (formerly MAHLE) High-pressure filter Pi 44-13 FL / 7834123

  • Low space requirement due to compact design
  • Modular system for optimum filter selection
  • Minimal pressure loss due to streamlined design of the components
  • Bypass
  • Electrical maintenance indicator
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements


    • Important note:
    We supply the Mahle Pi 44-13 high-pressure filter without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Flange ISO 6162-2
    Bypass opening pressure (bar) 7
    Contact type Contamination indicator Closer / Opener
    Display pressure of contamination indicator (bar) 5
    Evaluation of pollution indicators electrical / mechanical
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Filter housing material Steel
    Operating temperature -10°C bis +120°C
    Connection size DN 38
    Nominal size 400
    Filter head material GGG
    Seal material NBR
    Max. Operating pressure (bar) 400
