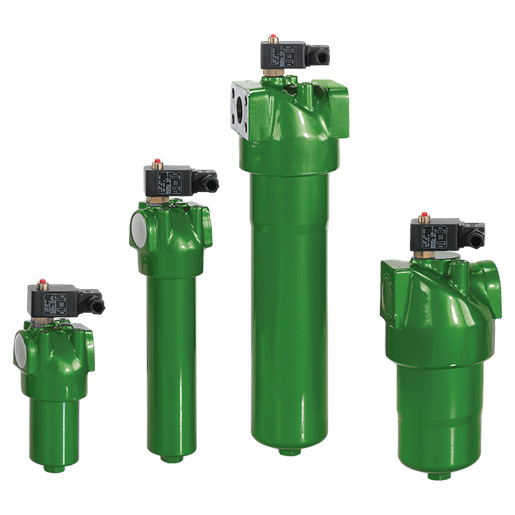

Filtration Group High pressure filter Pi 40004-013

587.86 € 587.86 EUR 587.86 € VAT Included

494.00 € VAT Included

Brand

This combination does not exist.

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

78304156

Category :

Filtration Group High Pressure Filter

Weight :

4.30 kg

Description
Specifications

Filtration Group (formerly MAHLE) High-pressure filter Pi 44-13 / 7834156

Low space requirement due to compact design

Modular system for optimum filter selection

Minimal pressure loss due to streamlined design of the components

Bypass

Electrical maintenance indicator

Available with high-efficiency PS filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle Pi 44-13 high-pressure filter without the filter element.
For suitable filter elements and accessories, see "Accessories".

Bypass opening pressure (bar)	7
Contact type Contamination indicator	Closer / Opener
Display pressure of contamination indicator (bar)	5
Evaluation of pollution indicators	electrical / mechanical
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Filter housing material	Steel
Operating temperature	-10°C bis +120°C
Connection type	Thread ISO 228
Nominal size	40
Filter head material	GGG
Connection size	G1/2
Seal material	NBR
Max. Operating pressure (bar)	400

Filtration Group High pressure filter Pi 40004-013

Brand

Filtration Group (formerly MAHLE) High-pressure filter Pi 44-13 / 7834156
