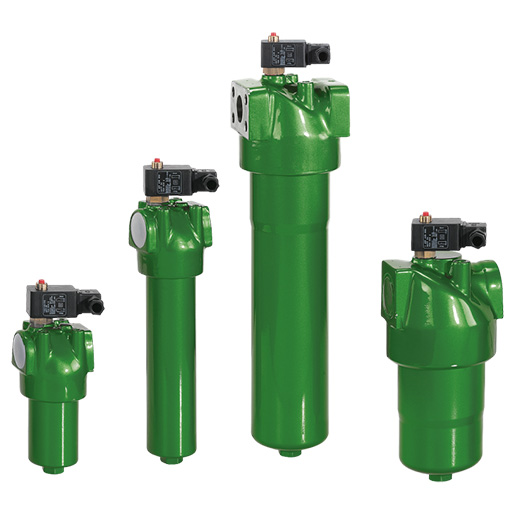

Filtration Group Medium pressure filter Pi 30006-013

534.31 € 534.3100000000001 EUR 534.31 € VAT Included

449.00 € VAT Included

Brand

This combination does not exist.

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

78304214

Category :

Filtration Group Medium Pressure Filter

Weight :

4.85 kg

Description
Specifications

Filtration Group (formerly MAHLE) Medium pressure filter Pi 36-13 / 7834214

Low space requirement due to compact design

Modular system for optimum filter selection

Minimal pressure loss due to streamlined design of the components

Threaded connection

Bypass

Electrical maintenance indicator

Available with high-efficiency PS filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High dirt holding capacity and differential pressure stability of the elements

Important note:
We supply the Mahle medium pressure filter Pi 36-13 without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Thread ISO 228
Connection size	G 3/4
Display pressure of contamination indicator (bar)	5
Evaluation of pollution indicators	electrical / mechanical
Operating temperature	-10°C bis +120°C
Bypass opening pressure (bar)	7
Contact type Contamination indicator	Closer / Opener
Max. Operating pressure (bar)	315
Nominal size	63
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Seal material	NBR
Filter housing material	Steel
Filter head material	GGG

Filtration Group Medium pressure filter Pi 30006-013

Brand

Filtration Group (formerly MAHLE) Medium pressure filter Pi 36-13 / 7834214
