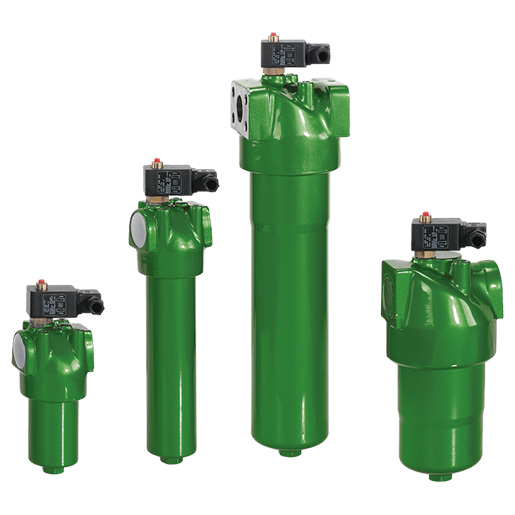

Filtration Group Medium pressure filter Pi 30010-013

Price:

571.20 €

English (US)
  2. Shop
  3. Filtration Group Medium Pressure Filter
  4. Filtration Group Medium pressure filter Pi 30010-013
Filtration Group Double switching filter PI 3705-015
Filtration Group Double switching filter PI 3705-015
1,627.92 € 1,627.92 €
Filtration Group Medium pressure filter Pi 3630-014
Filtration Group Medium pressure filter Pi 3630-014
644.98 € 644.98 €

Filtration Group Medium pressure filter Pi 30010-013

https://staging-filcom-16.laminfra.de/web/image/product.template/233910/image_1920?unique=d4441e6

571.20 € 571.2 EUR 571.20 € VAT Included

480.00 € VAT Included

(571.20 € / pcs)

Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Filtration Group

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

78304222

Category :

Filtration Group Medium Pressure Filter

Weight :

5.85 kg

Filtration Group (formerly MAHLE) Medium pressure filter Pi 31-13 / 7834222

  • Low space requirement due to compact design
  • Modular system for optimum filter selection
  • Minimal pressure loss due to streamlined design of the components
  • Threaded connection
  • Bypass
  • Electrical maintenance indicator
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements


    • Important note:
    We supply the Mahle medium pressure filter Pi 31-13 without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Thread ISO 228
    Connection size G 1
    Display pressure of contamination indicator (bar) 5
    Evaluation of pollution indicators electrical / mechanical
    Operating temperature -10°C bis +120°C
    Bypass opening pressure (bar) 7
    Contact type Contamination indicator Closer / Opener
    Max. Operating pressure (bar) 315
    Nominal size 100
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material Steel
    Filter head material GGG
