Filtration Group Low-pressure duplex filter Pi 21004-058

https://staging-filcom-16.laminfra.de/web/image/product.template/233911/image_1920?unique=d4441e6

1,197.14 € 1197.14 EUR 1,197.14 € VAT Included

1,006.00 € VAT Included

(1,197.14 € / pcs)

Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Filtration Group

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

78304263

Category :

Filtration Group Duplex Filter

Weight :

3.30 kg

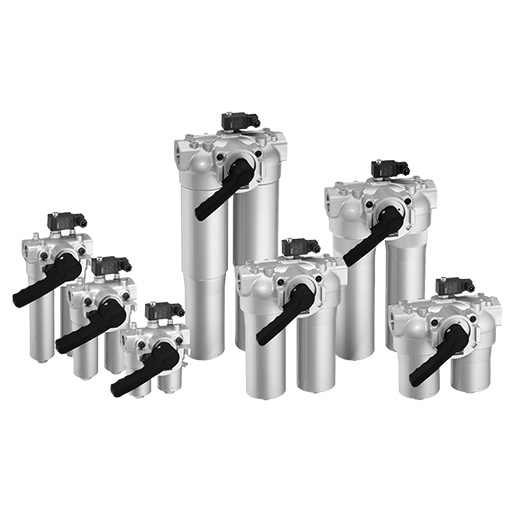

Filtration Group (formerly MAHLE) Low-pressure duplex filter Pi 214-58 / 7834263

  • Low space requirement due to compact design
  • Bypass
  • Electrical maintenance indicator
  • Threaded connection
  • Changeover plug on dirty side only
  • Ergonomic changeover lever with pressure compensation and lever lock
  • Minimal pressure loss due to streamlined design of the components
  • Available with high-efficiency PS filter elements
  • Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
  • High dirt holding capacity and differential pressure stability of the elements

    • Important note:
    We supply the Mahle Pi 214-58 low-pressure duplex filter without the filter element.
    For suitable filter elements and accessories, see "Accessories".

    Connection type Thread ISO 228
    Connection size G 1
    Display pressure of contamination indicator (bar) 2,2
    Evaluation of pollution indicators electrical / mechanical
    Operating temperature -10°C bis +120°C
    Bypass valve Opening pressure (bar) 3,5
    Contact type Contamination indicator Closer / Opener
    Max. Operating pressure (bar) 63
    Nominal size 40
    Type Contamination indicator VA Differential pressure
    Contamination indicator ja
    Seal material NBR
    Filter housing material ALU
    Filter head material ALU
