Filtration Group dust filter element 852 903 TI 70-1

Price:

98.29 €

English (US)
  2. Shop
  3. Dedusting Filter Media
  4. Filtration Group dust filter element 852 903 TI 70-1

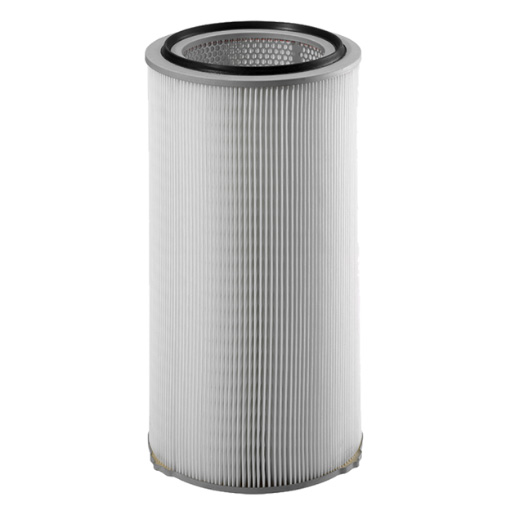

Filtration Group dust filter element 852 782 TI 19/2-7,5 Band
Filtration Group dust filter element 852 782 TI 19/2-7,5 Band
284.41 € 284.41 €

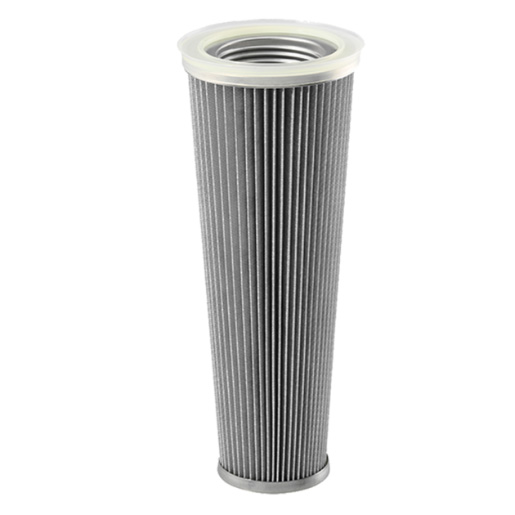

Filtration Group dust filter element 852 902 TI 15-0,5 V4A FOOD 2
Filtration Group dust filter element 852 902 TI 15-0,5 V4A FOOD 2
185.64 € 185.64 €

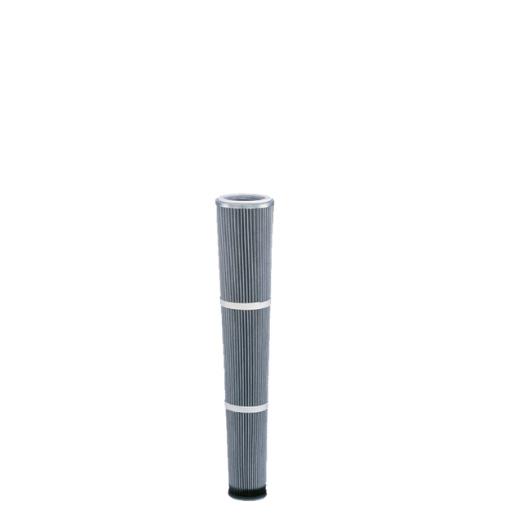

Filtration Group dust filter element 852 903 TI 70-1

https://staging-filcom-16.laminfra.de/web/image/product.template/233931/image_1920?unique=d4441e6

98.29 € 98.29 EUR 98.29 € VAT Included

82.60 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

Contact Us
Filtration Group

Filtration Group

Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods

Product no. :

78311763

Category :

Dedusting Filter Media

Weight :

0.61 kg

Filtration Group (formerly MAHLE) Dust filter element 852 93 TI 7-1 / 78311763

  • Lower filter surface load due to reduced inflow velocity
  • Even cleaning down to the lower area
  • 3 % more free area - thus improved dust sedimentation
  • Longer element service life thanks to improved cleaning line

    • Notes:
    - Deviations in the volume flow values are possible due to the type of dust and gas composition.
    - The operating temperature depends on the medium/material.

    Outer diameter (mm) 120
    Element fastening Rd 72 x 5
    Element shape Conical
    Element type 852 Series
    End disc material Sheet metal end plate
    Wrinkle stabilisation Banderole
    Filter material TI 70
    Height (mm) 600
    Inner diameter (mm) 68
    Installation Raw gas side
    Medium Air
    Seal material Felt (polyester)
    FG-Datenblatt_fg-120nk-de
    Download
