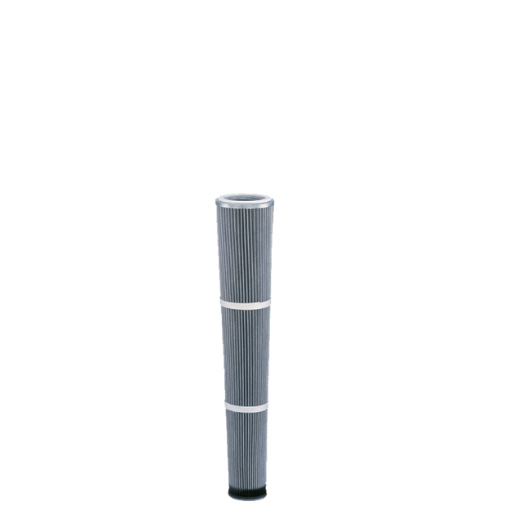

Filtration Group dust filter element 852 904 TI 15-1,6 V4A
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Dust filter element 852 94 TI 15-1.6 V4A / 78311953
Lower filter surface load due to reduced inflow velocity
Even cleaning down to the lower area
3 % more free area - thus improved dust sedimentation
Longer element service life thanks to improved cleaning line
Notes:
- Deviations in the volume flow values are possible due to the type of dust and gas composition.
- The operating temperature depends on the medium/material.
| Outer diameter (mm) | 120 |
| Element fastening | Rd 72 x 5 |
| Element shape | Conical |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Wrinkle stabilisation | Banderole |
| Filter material | TI 15 |
| Height (mm) | 983 |
| Inner diameter (mm) | 68 |
| Installation | Raw gas side |
| Medium | Air |
| Seal material | Felt (polyester) |
