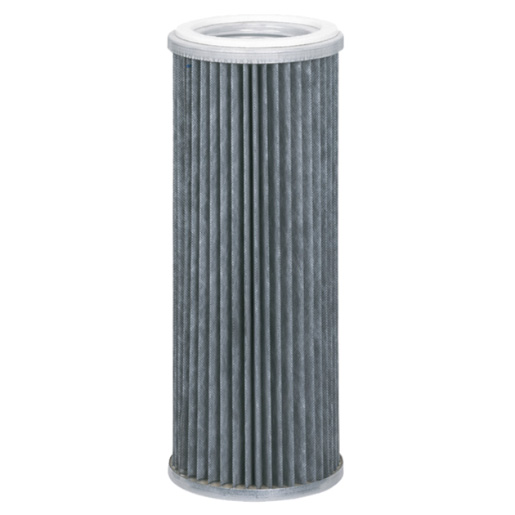

Filtration Group dust filter element 852 656 TI 70-0,25 2-pack
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Dust filter element 852 656 TI 70-0.25 pack of 2 / 78334708
High load capacity and stability
Good cleaning behavior
Optimized energy efficiency
Notes:
- The volume flow rate value is based on a filter surface load of 1.7 m³/m² min
- The initial pressure loss of > 25 pa depends on the volume flow rate and filter material
- The operating temperature depends on the media/material
| Outer diameter (mm) | 115,00 |
| Element fastening | Rd 60 x 4 |
| Element shape | Cylindrical |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Filter material | TI 70 |
| Height (mm) | 200 |
| Inner diameter (mm) | 54 |
| Installation | Raw gas side |
| Medium | Air |
| Seal material | Felt (polyester) |
