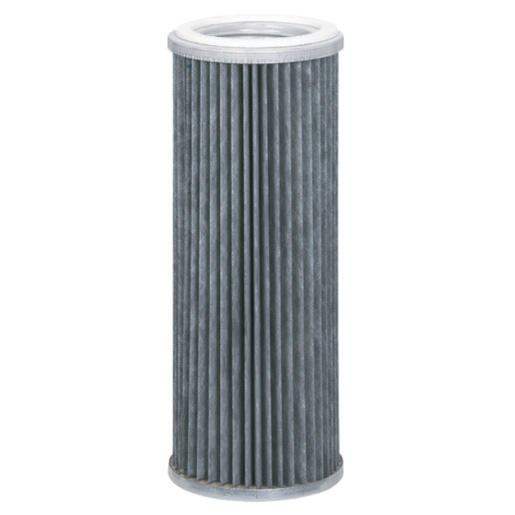

Filtration Group dust filter element 852 926 TI 08-0,3 2-pack
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Dust filter element 852 926 TI 8-,3 pack of 2 / 78334864
Note:
Deviations in the volume flow values are possible due to the type of dust and gas composition.
| Outer diameter (mm) | 120 |
| Electrostatic discharge capability | yes |
| Element fastening | Rd 72 x 5 |
| Element shape | Cylindrical |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Filter material | TI 08 |
| Height (mm) | 200 |
| Inner diameter (mm) | 68 |
| Installation | Raw gas side |
| Medium | Air |
| Seal material | Felt (polyester) |
