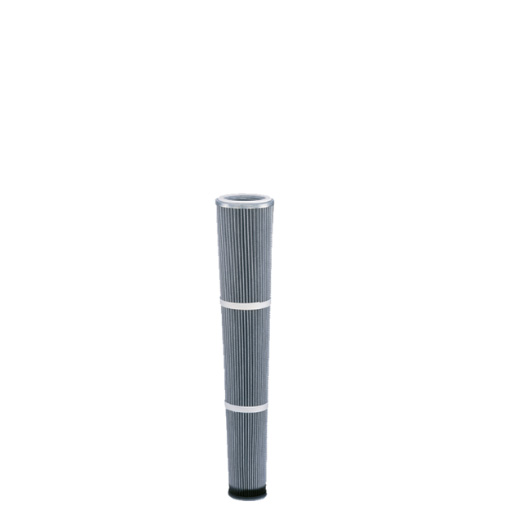

Filtration Group dust filter element 852 903 TI 07/1-0,5 V4A FRV FOOD SF
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
| Outer diameter (mm) | 120 |
| Electrostatic discharge capability | yes |
| Element fastening | Rd 72 x 5 |
| Element shape | Conical |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Wrinkle stabilisation | Banderole |
| Filter material | TI 07/1+DRG |
| Height (mm) | 600 |
| Inner diameter (mm) | 68 |
| Installation | Raw gas side |
| Medium | Air |
| Seal material | Silicone |
