KAESER Activated carbon adsorber model ACT 67
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Product no. :
902724.0Category :
Activated Carbon AdsorbersWeight :
170.00 kgDelivery area :
GermanyKAESER ACT activated carbon adsorbers provide technically oil-free and odorless compressed air for continuous applications. They achieve residual oil contents of class 1 in accordance with ISO 8573-1 and protect sensitive production processes. With an oil vapor indicator, they guarantee a service life of up to 12,000 full-load hours or 5 years and are economical thanks to their low pressure loss.
| Volume flow (m³/min) | 6,70 |
| Pressure loss (bar) | 0,1 |
| Min. overpressure (bar) | 4 |
| Max. Overpressure (bar) | 16 |
| Min. ambient temperature (°C) | +2 |
| Max. Ambient temperature (°C) | +45 |
| Volume of compressed air tank (litres) | 93 |
| Width (mm) | 550 |
| Depth (mm) | 750 |
| Height (mm) | 1980 |
| Compressed air connection | R 1½ |
| Min. inlet temperature compressed air (°C) | +2 |
| Max. Compressed air inlet temperature (°C) | +55 |

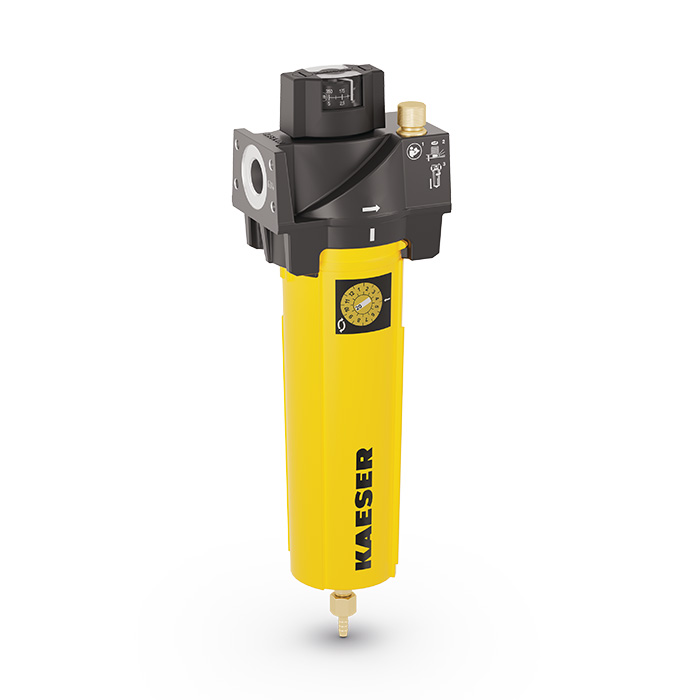

![[102125.10601] KAESER Filter Dust model F83KD G 1 1/2"](/web/image/product.template/262321/image_128/%5B102125.10601%5D%20KAESER%20Filter%20Dust%20model%20F83KD%20G%201%201-2%22?unique=d4441e6)
