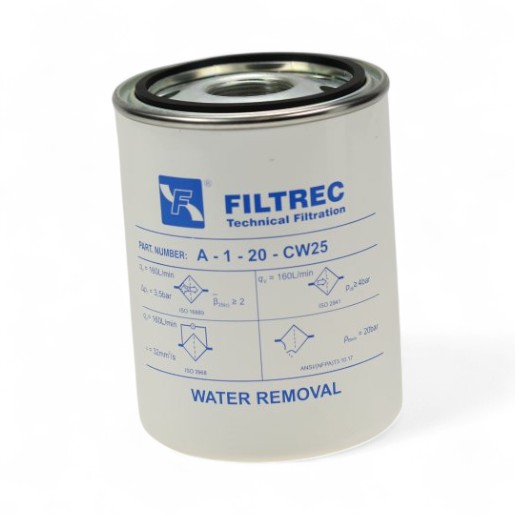

FILTREC spin-on filter SpinOn A120CW25
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC in-line filter A120CW25 - cellulose, 25µm
The FILTREC filter element for line filter A120CW25 with cellulose filter medium, 25 µm filter fineness, NBR seal and max. 5 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Max. Operating pressure (bar) | 12 |
| max. differential pressure (bar) | 5 |
| Outer diameter (mm) | 129 |
| Height (mm) | 182 |
| Connection thread | 1 1/4"-11 BSP |
| Filter material | Cellulose + water-absorbent |
| Filter fineness c (micrometer) | ß25=2 |
| Seal material | NBR |

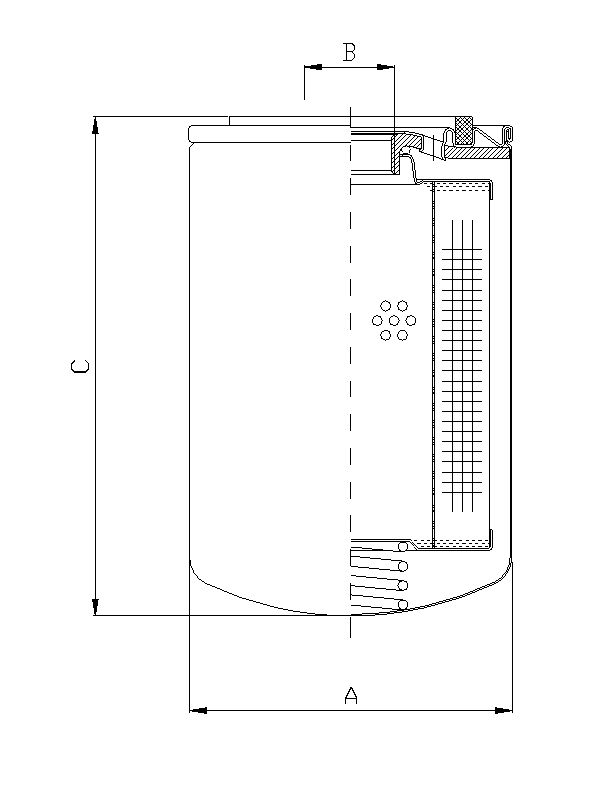

| A | 129 mm |
| B | 1 1/4"-11 BSP |
| C | 182 mm |
