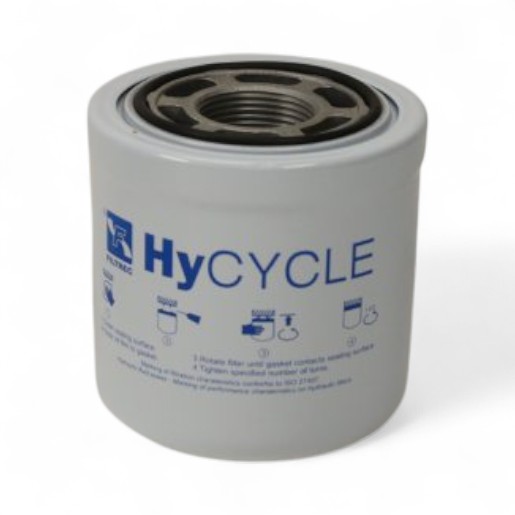

FILTREC spin-on filter SpinOn HyCycle A405G10
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC filter element A405G10 - glass fiber, 10µm
The FILTREC filter element for filter element A405G10 with glass fiber filter medium, 10µm filter fineness, NBR seal and max. 15 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Max. Operating pressure (bar) | 34,5 |
| max. differential pressure (bar) | 15 |
| Outer diameter (mm) | 95 |
| Height (mm) | 101 |
| Connection thread | 1"3/8-12 UNF 2B |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß10=200 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |

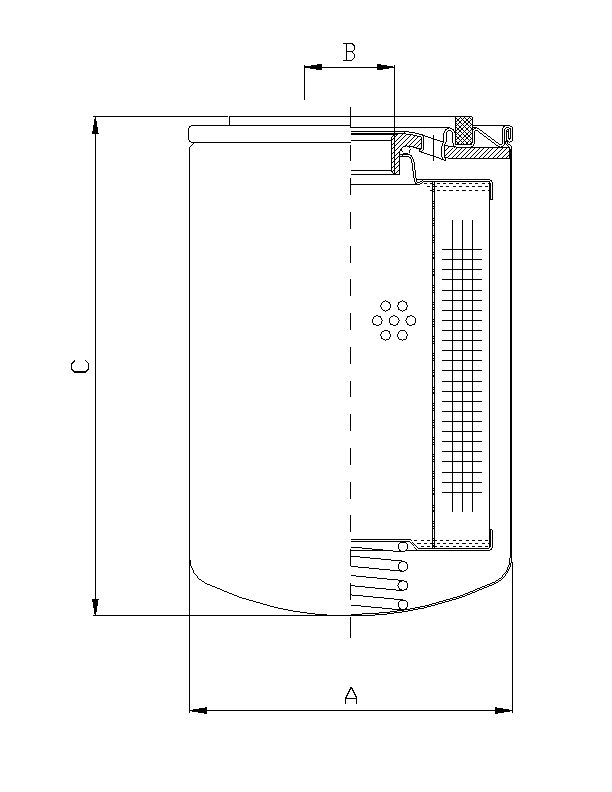

| A | 95 mm |
| B | 1"3/8-12 UNF 2B |
| C | 101 |
