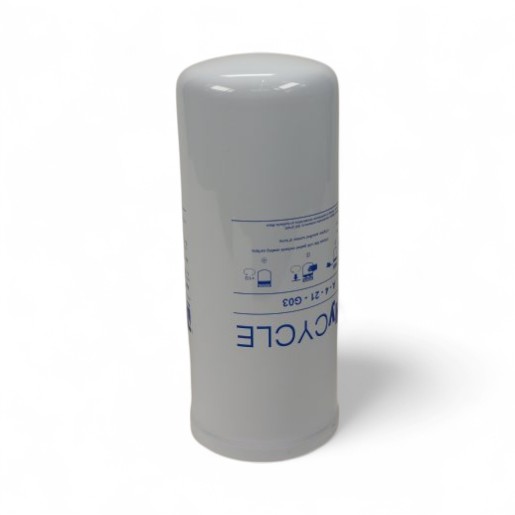

FILTREC spin-on filter SpinOn HyCycle A421G03
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC filter element A421G03 - glass fiber
The FILTREC filter element for filter element A421G03 with glass fiber filter medium, NBR seal and max. 12 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Max. Operating pressure (bar) | 24 |
| max. differential pressure (bar) | 12 |
| Outer diameter (mm) | 117 |
| Height (mm) | 297.5 |
| Connection thread | 1 3/4"-12 UN 2B |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß4,5=1000 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |

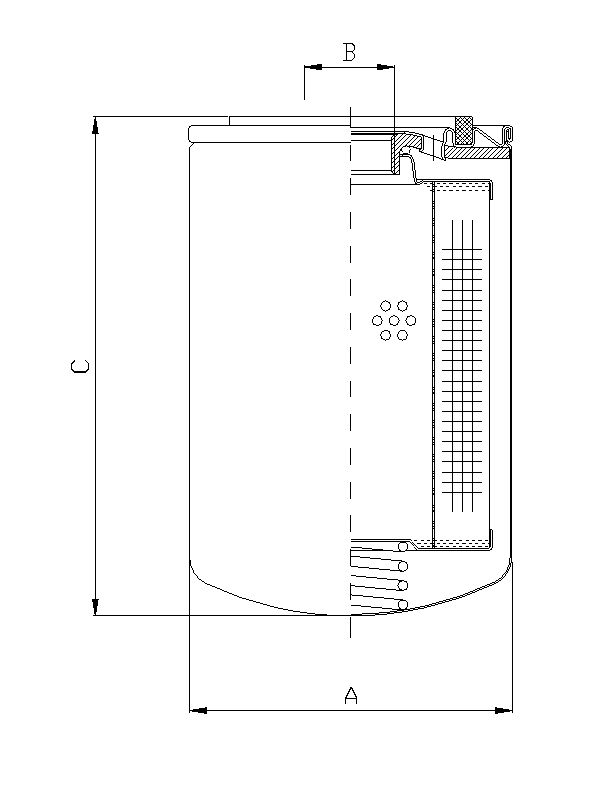

| A | 117 mm |
| B | 1 3/4"-12 UN 2B |
| C | 2975 |
