FILTREC filter element for pressure filter D156G10A
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

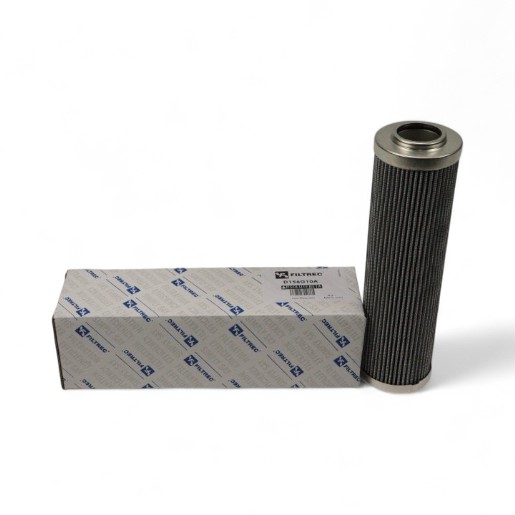

FILTREC pressure filter D156G10A - glass fiber
The FILTREC filter element for pressure filter D156G10A with glass fiber filter medium, NBR seal and max. 21 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 21 |
| Outer diameter (mm) | 64,00 |
| Height (mm) | 230 |
| Inner diameter (mm) | 32.5 |
| Filter material | Glass fiber |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |

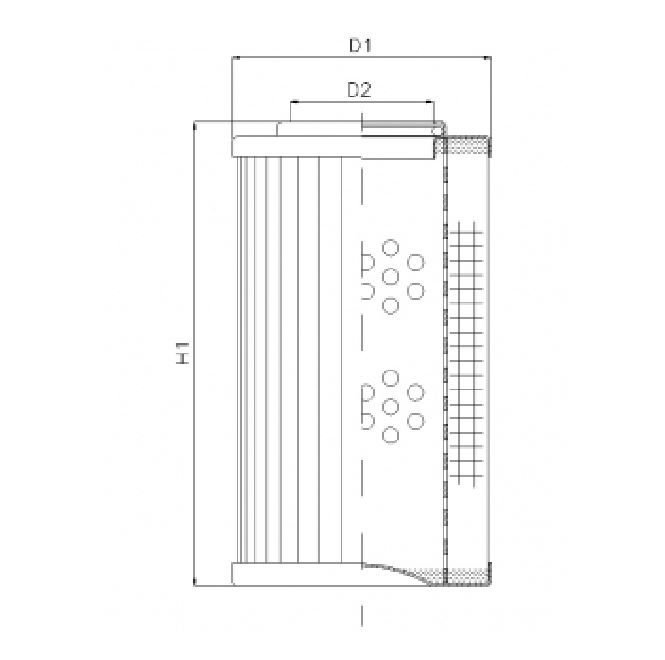

| D1 | 64 |
| D2 (mm) | 32.5 |
| H1 | 230 |
