FILTREC hydraulic filter element (pressure filter) D220T60
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

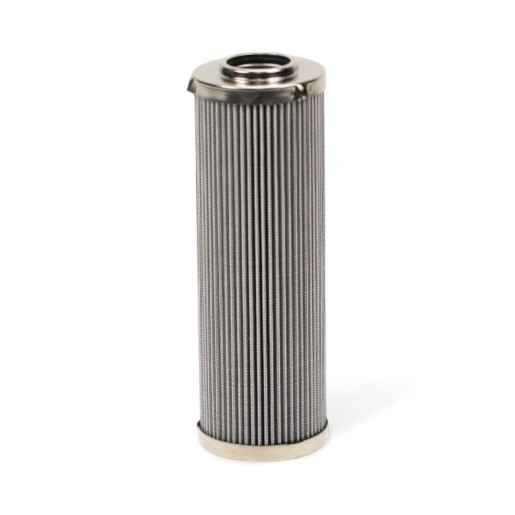

FILTREC pressure filter D220T60 - stainless steel wire mesh, 60µm
The FILTREC filter element for pressure filter D220T60 with stainless steel wire mesh filter medium, 60 µm filter fineness, NBR seal and max. 4 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 4 |
| Outer diameter (mm) | 70 |
| Height (mm) | 83 |
| Inner diameter (mm) | 29 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 60 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |
| D1 | 70 |
| D2 (mm) | 29 |
| D3 (mm) | 125 |
| H1 | 83 |
| H2 | 80 |
| H3 | 3 |
