FILTREC filter element for pressure filter D410T120
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

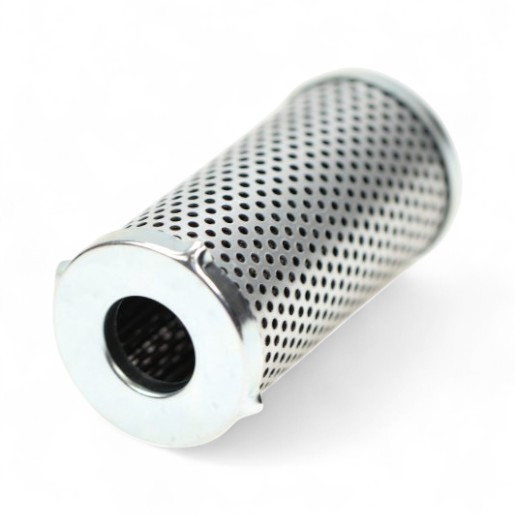

FILTREC pressure filter D410T120 - stainless steel wire mesh, 120µm
The FILTREC filter element for pressure filter D410T120 with stainless steel wire mesh filter medium, 120 µm filter fineness and max. 10 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 10 bar |
| Outer diameter (mm) | 60,00 |
| Height (mm) | 123 |
| Inner diameter (mm) | 27 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 120 |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |

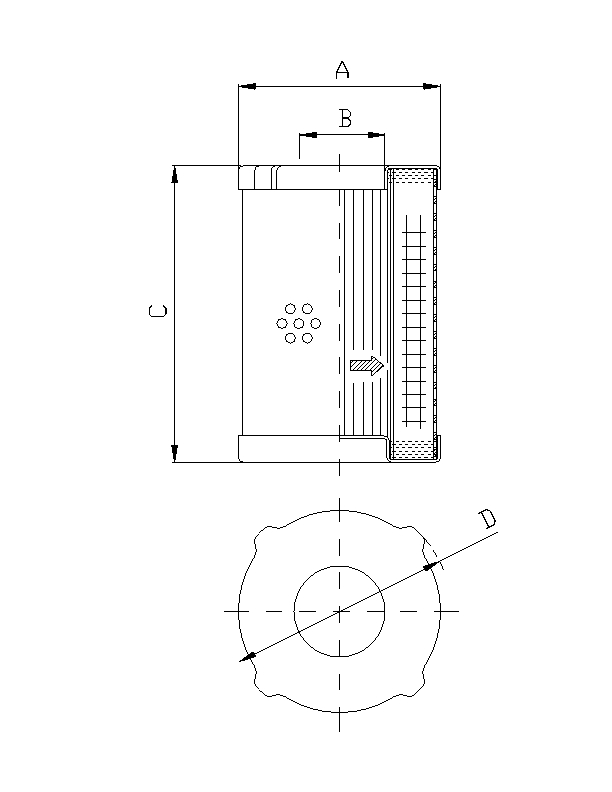

| A | 60 mm |
| B | 27 mm |
| C | 123 mm |
