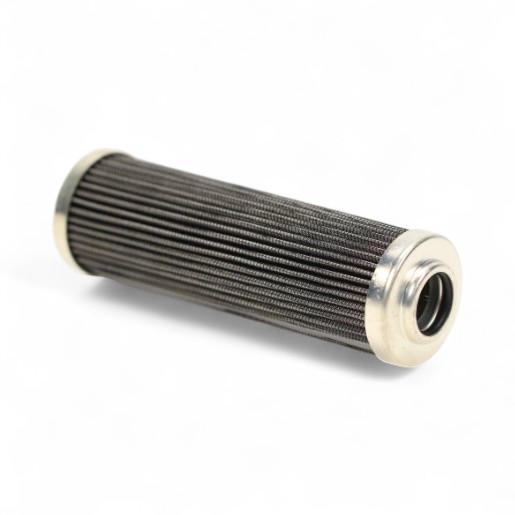

FILTREC hydraulic filter element (pressure filter) DHD110S200B
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC pressure filter DHD110S200B - stainless steel wire mesh, 200µm
The FILTREC filter element for pressure filter DHD110S200B with stainless steel wire mesh filter medium, 200 µm filter fineness and max. 30 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 30 |
| Outer diameter (mm) | 47 |
| Height (mm) | 153 |
| Inner diameter (mm) | 22.1 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 200 |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 47 mm |
| B | 22.4 |
| C | 153 mm |
