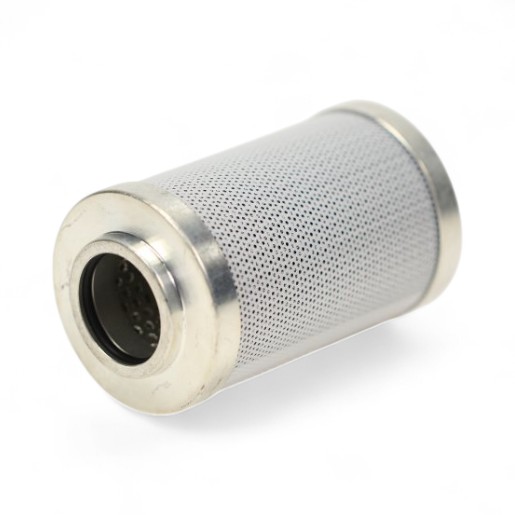

FILTREC hydraulic filter element (pressure filter) DHD160H10B/ESD
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC pressure filter DHD160H10B/ESD - glass fiber, 12µm
The FILTREC filter element for pressure filter DHD160H10B/ESD with glass fiber filter medium, 12µm filter fineness, NBR seal and max. 210 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 210 |
| Outer diameter (mm) | 69 |
| Height (mm) | 115 |
| Inner diameter (mm) | 34.1 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß12=1000 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 69 mm |
| B | 34.1 |
| C | 115 mm |
