FILTREC hydraulic filter element (pressure filter) DHD280G10B
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

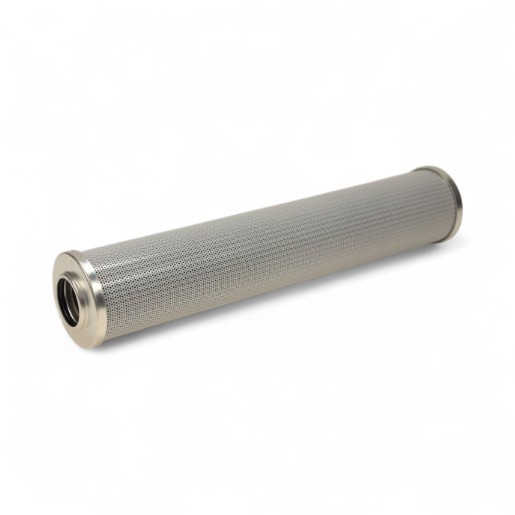

FILTREC pressure filter DHD280G10B - glass fiber, 10µm
The FILTREC filter element for pressure filter DHD280G10B with glass fiber filter medium, 10µm filter fineness and NBR seal offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| Outer diameter (mm) | 69 |
| Height (mm) | 355 |
| Inner diameter (mm) | 34.2 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß10=200 / ß12=1000 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |
| A | 69 mm |
| B | 34.2 |
| C | 355 |
