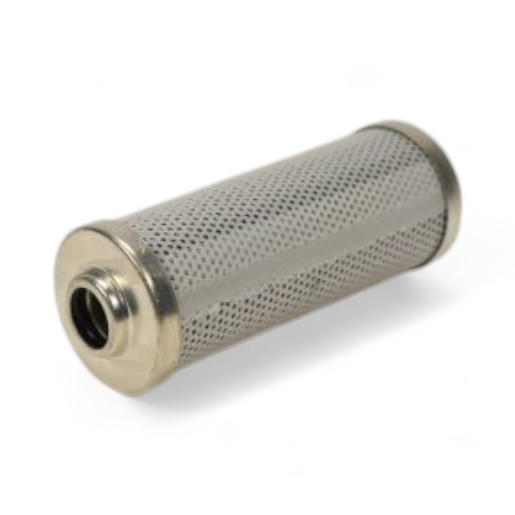

FILTREC hydraulic filter element (pressure filter) DHD30G03B
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC pressure filter DHD30G03B - glass fiber
The FILTREC filter element for pressure filter DHD30G03B with glass fiber filter medium, NBR seal and max. 30 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 30 |
| Outer diameter (mm) | 35 |
| Height (mm) | 93 |
| Inner diameter (mm) | 12.5 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß4,5=1000 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 35 mm |
| B | 12.5 mm |
| C | 93 mm |
