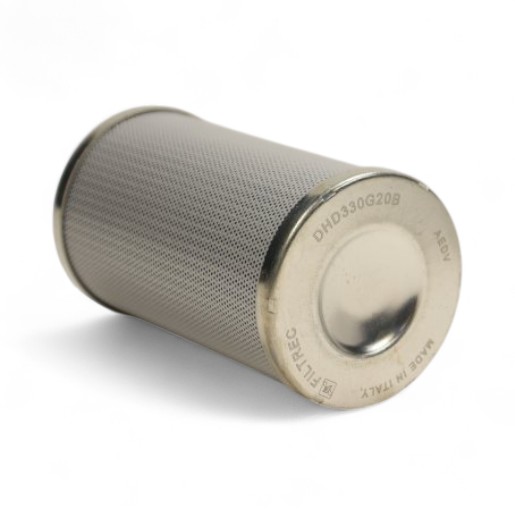

FILTREC hydraulic filter element (pressure filter) DHD330H03V
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC pressure filter DHD330H03V - glass fiber, 4µm
The FILTREC filter element for pressure filter DHD330H03V with glass fiber filter medium, 4µm filter fineness, VITON seal and max. 210 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 210 |
| Outer diameter (mm) | 90.5 |
| Height (mm) | 162 |
| Inner diameter (mm) | 48.1 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | <ß4=200 / ß5=1000 |
| Seal material | VITON |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| D1 | 90.5 |
| D2 (mm) | 48.1 |
| H1 | 162 |
