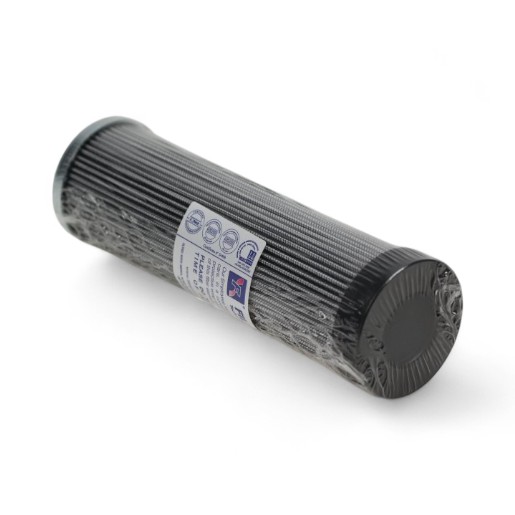

FILTREC hydraulic filter element DLD100E10B0
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC pressure filter DLD100E10B0 - glass fiber, 12µm
The FILTREC filter element for pressure filter DLD100E10B0 with glass fiber filter medium, 12µm filter fineness, NBR seal and max. 16 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 16 bar |
| Outer diameter (mm) | 60,00 |
| Height (mm) | 199 |
| Inner diameter (mm) | 32.5 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß12=1000 |
| Filter fineness c (micrometer) | ß10=200 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |
| A | 60 mm |
| B | 32.5 |
| C | 199 |
