FILTREC filter element for pressure filter DMD0015E03B
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

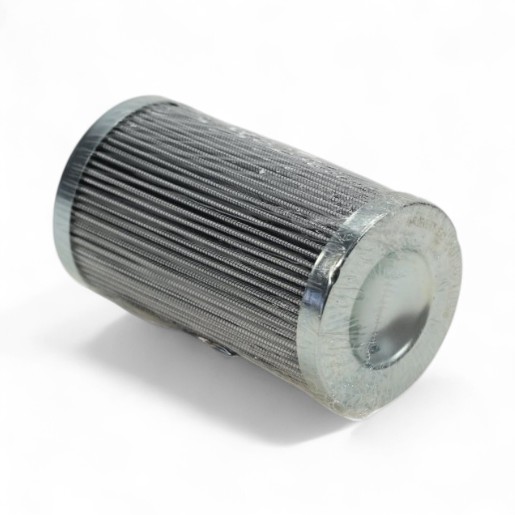

FILTREC pressure filter DMD0015E03B - glass fiber
The FILTREC filter element for pressure filter DMD0015E03B with glass fiber filter medium and max. 30 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 30 |
| Outer diameter (mm) | 83,5 |
| Height (mm) | 142 |
| Inner diameter (mm) | 47.4 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß4,5=1000 |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 83.5 |
| B | 47.4 mm |
| C | 142 mm |
