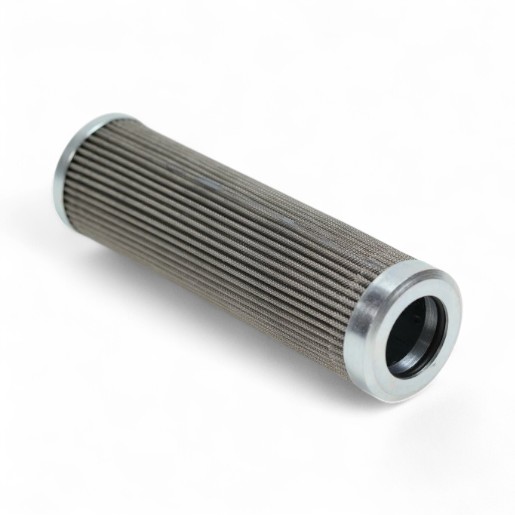

FILTREC filter element for pressure filter DMD127W25B
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC pressure filter DMD127W25B - stainless steel wire mesh, 25µm
The FILTREC filter element for pressure filter DMD127W25B with stainless steel wire mesh filter medium, 25 µm filter fineness, NBR seal and max. 210 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 210 |
| Outer diameter (mm) | 51.5 |
| Height (mm) | 178 |
| Inner diameter (mm) | 32.2 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 25 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 51.5 mm |
| B | 32.2 |
| C | 178 |
