FILTREC hydraulic filter element (pressure filter) DMD821B60B
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable

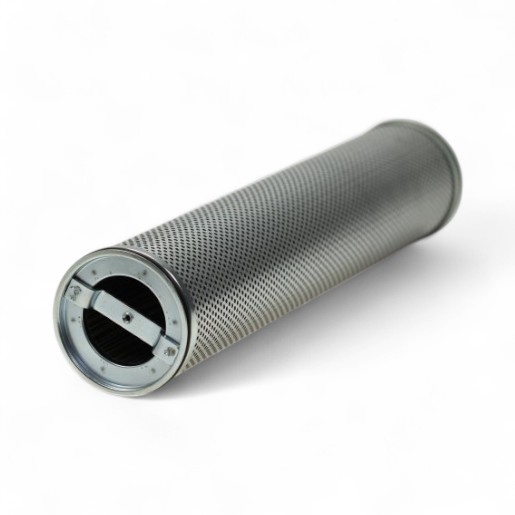

FILTREC pressure filter DMD821B60B - stainless steel wire mesh, 60µm
The FILTREC filter element for pressure filter DMD821B60B with stainless steel wire mesh filter medium and 60µm filter fineness offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Outer diameter (mm) | 100.5 |
| Height (mm) | 510 |
| Connection thread | M6 |
| Inner diameter (mm) | 62 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 60 |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 100.5 |
| B | M6 |
| C | 62 mm |
| D | 510 |
