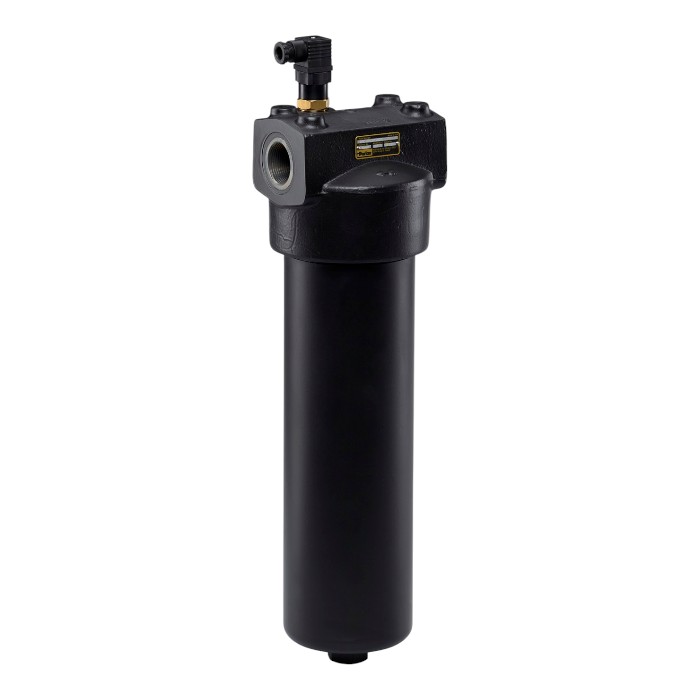

Parker high pressure hydraulic oil line filter EPF2110QIBM3KG121
As a global leader, Parker offers a comprehensive technology portfolio for filtration, separation, cooling and adsorption in compressed air and gas treatment
Parker High-pressure hydraulic oil line filter EPF2110QIBM3KG121, EPF (iProtect) series (0 to 100 l/min, G¾, 10 µm)
Pressure line filter from the Parker iProtect EPF series (up to 420 bar, up to 700 l/min, Quantumfiber element).
Data for this variant: 0 to 100 l/min; connection G¾; 10 µm. Further key data: Filter medium 10QI (micro glass); Bypass 3.5 bar; Indicator Visual indicator; Nitrile seal; Standard option, incl. bypass.
Installed behind the pump as a working or protective filter.
| Flow rate (l/min) | 0 to 100 |
| Filter element | 10QI (Microglass) |
| Connection type | G¾ |
| Options | Standard, incl Bypass |
| Bypass valve Pressure range (bar) | 3,5 |
| Filter fineness (micrometres) | 10 |
| Indicator type | Visual indicator |
| Seal material | Nitril |
