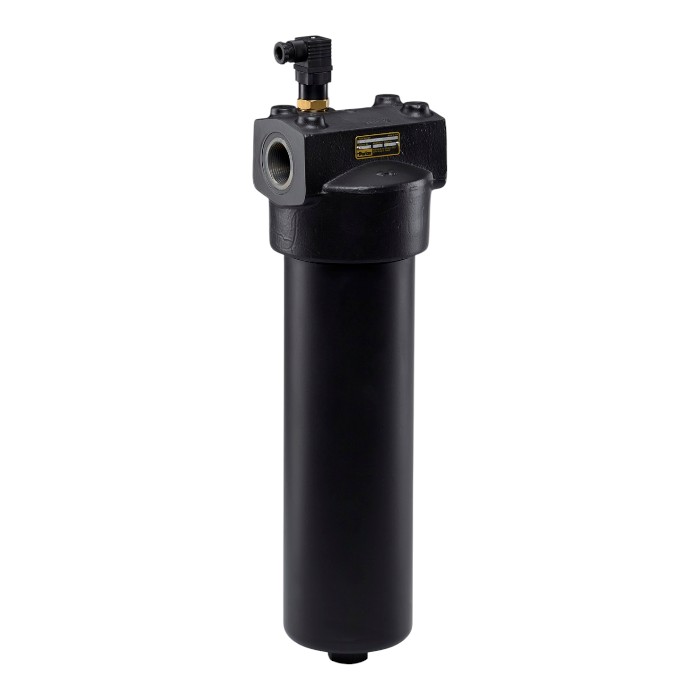

Parker high pressure hydraulic oil line filter EPF2202QIHBT1MX122
As a global leader, Parker offers a comprehensive technology portfolio for filtration, separation, cooling and adsorption in compressed air and gas treatment
Parker High-pressure hydraulic oil line filter EPF2202QIHBT1MX122, EPF (iProtect) series (0 to 100 l/min, distributor Ø22.23 mm (⅞"), 2 µm)
Pressure line filter from the Parker iProtect EPF series (up to 420 bar, up to 700 l/min, Quantumfiber element).
Data for this variant: 0 to 100 l/min; connection manifold Ø22.23 mm (⅞"); 2 µm. Further key data: Filter medium 02QIH (high-strength micro glass); Bypass No bypass at 5.0 bar Display bar; Indicator electrical NO/NC; Seal nitrile; Option without bypass.
Installed behind the pump as a working or protective filter.
| Flow rate (l/min) | 0 to 100 |
| Filter element | 02QIH (High Strength Microglass) |
| Connection type | Manifold Ø22,23 mm (⅞") |
| Options | No Bypass |
| Bypass valve Pressure range (bar) | No Bypass with 5.0 bar indicator |
| Filter fineness (micrometres) | 2 |
| Indicator type | Electrical NO/NC |
| Seal material | Nitril |
