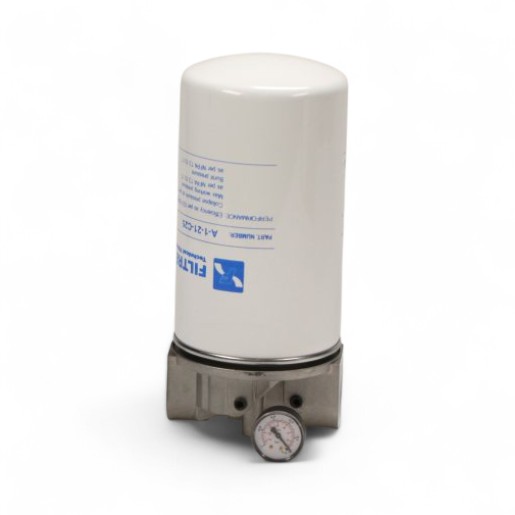

FILTREC in-line filter (suction filter) FA121C25BB6SMPS
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC suction filter FA121C25BB6SMPS - cellulose, 25µm
The FILTREC filter element for suction filter FA121C25BB6SMPS with cellulose filter medium, 25 µm filter fineness, NBR seal and max. 4 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Max. Operating pressure (bar) | 12 |
| max. differential pressure (bar) | 4 |
| Outer diameter (mm) | 133 |
| Connection thread | 1 1/4" BSP |
| Filter material | Cellulose |
| Filter fineness c (micrometer) | ß25=2 |
| Seal material | NBR |
| A | 1 1/4" BSP |
| H1 | 295 |
| H2 | 228 |
| L1 | 133 |
| L2 | 128 |
