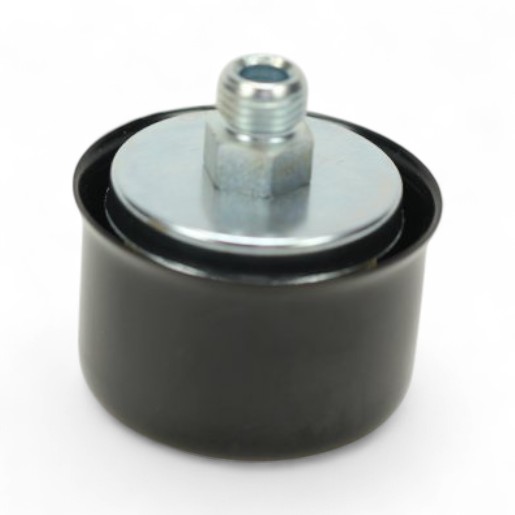

FILTREC air filter (1/4" BSP ventilation) FB110B1C10
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC filter element FB110B1C10 - cellulose, 10µm
The FILTREC filter element for filter element FB110B1C10 with cellulose filter medium and 10µm filter fineness offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Air filtration |
| Outer diameter (mm) | 48 |
| Height (mm) | 54 |
| Connection thread | 1/4" BSP |
| Filter material | Cellulose |
| Filter fineness (micrometres) | 10 |
| Zul. Dauereinsatztemperatur | -25°C to +110°C |
| A | 1/4" BSP |
| H1 | 54 |
| H2 | 9 mm |
| H3 | 45 |
| H4 (mm) | 32 |
| L1 | 48 mm |
