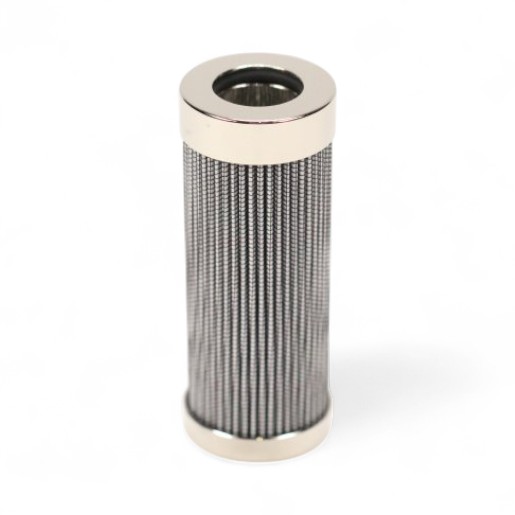

FILTREC replacement filter element for SF-Filter HY9406V
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for SF filter HY 9406V - quality from Italy
This FILTREC replacement filter element with glass fiber filter medium, 12 µm filter fineness, VITON seal and max. 210 bar differential pressure is the high-quality alternative to the SF filter HY 9406V. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| max. differential pressure (bar) | 210 |
| Outer diameter (mm) | 45 |
| Height (mm) | 114 |
| Inner diameter (mm) | 25.4 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß12=1000 |
| Seal material | VITON |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 45 mm |
| B | 25.4 |
| C | 114 mm |
